Mini Hot Plate Preheater MHP50
Mini Hot Plate Preheater MHP50
Mini Hot Plate Preheater MHP50
Mini Hot Plate Preheater MHP50

Mini Hot Plate Preheater MHP50

MINIWARE Mini Hot Plate Preheater MHP50 is the second mini-sized intelligent constant temperature heating plate designed by e-Design after Mini Hot Plate Preheater MHP30. Its heating area has been increased from 3cm*3cm to 5cm*5cm, while retaining pocket size, suitable for a wider scope of application.

Mini Hot Plate Preheater MHP50

Select the number of specifications

Please check the product information you want!

Product Detail Product Features


l 5cm*5cm heating area, 3.7cm height, mini pocket size, suitable for mobile soldering application scenarios;

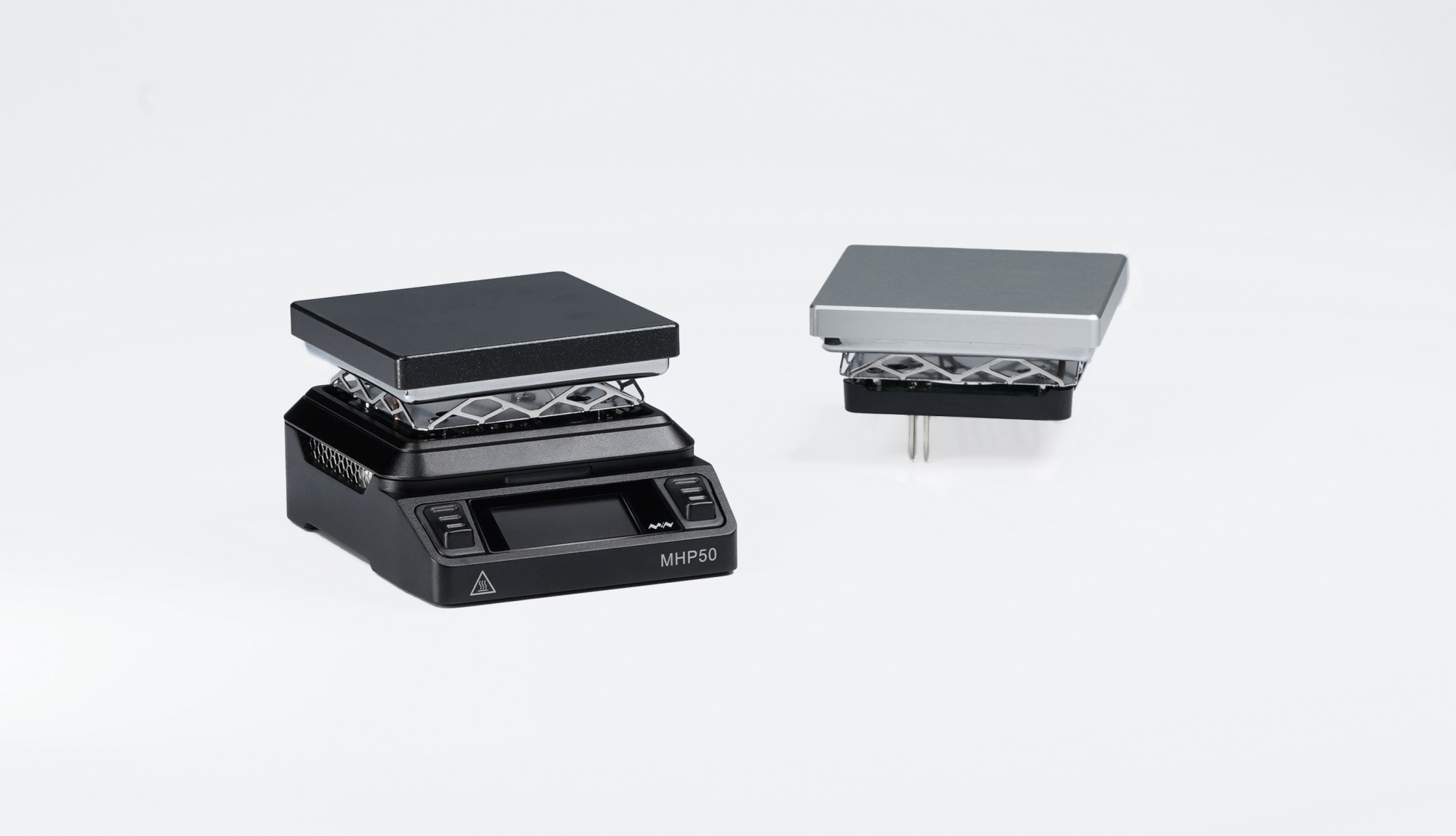

l Separable controller and hot plate, flexible to replace;

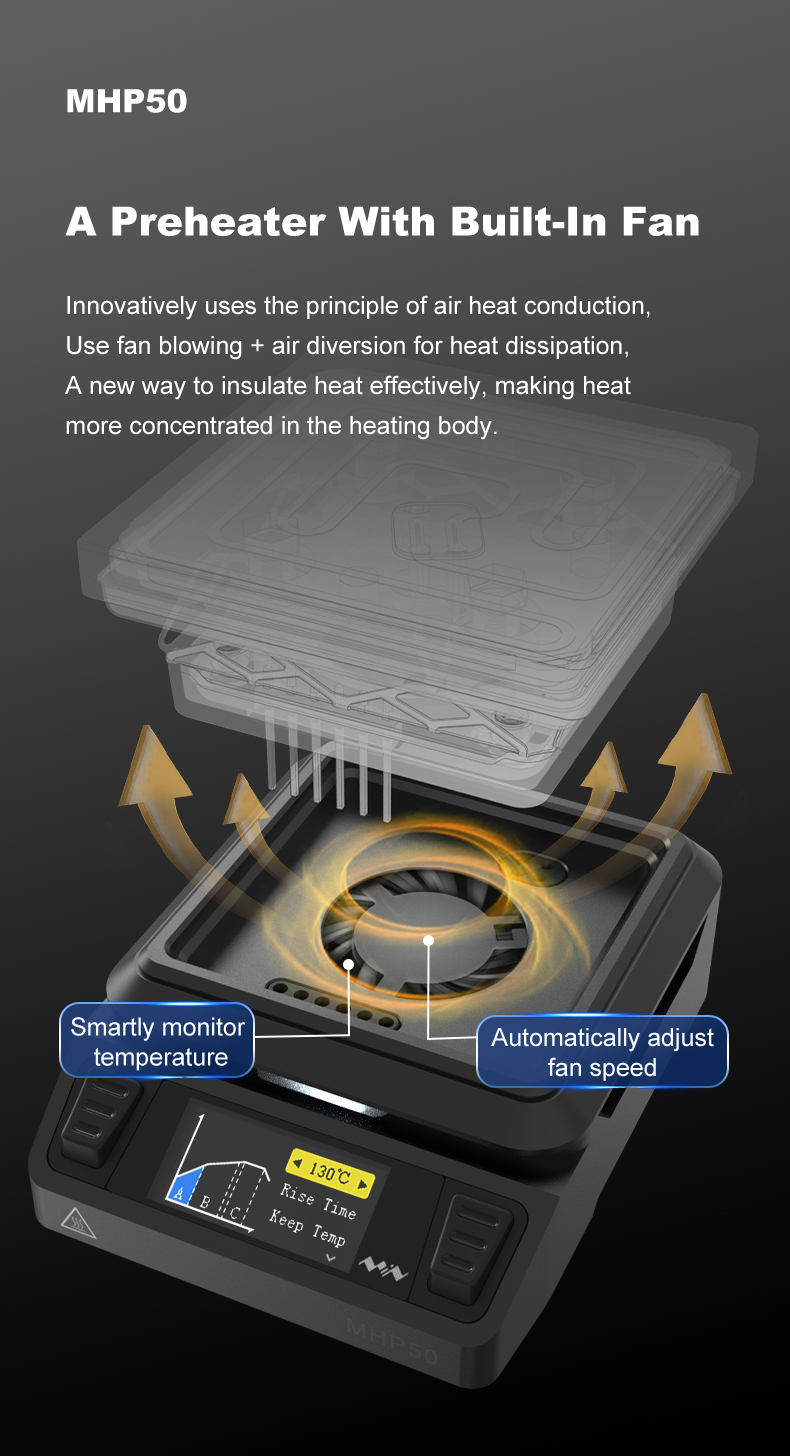

l Built-in high-speed cooling fan, which can automatically detect the temperature of the controller, intelligently adjust the fan speed, and accelerate heat dissipation;

l Innovative air deflector to effectively cut off heat transferring, protecting controller from thermal damage;

l 160*80 resolution color LCD display, clear and rich parameter display;

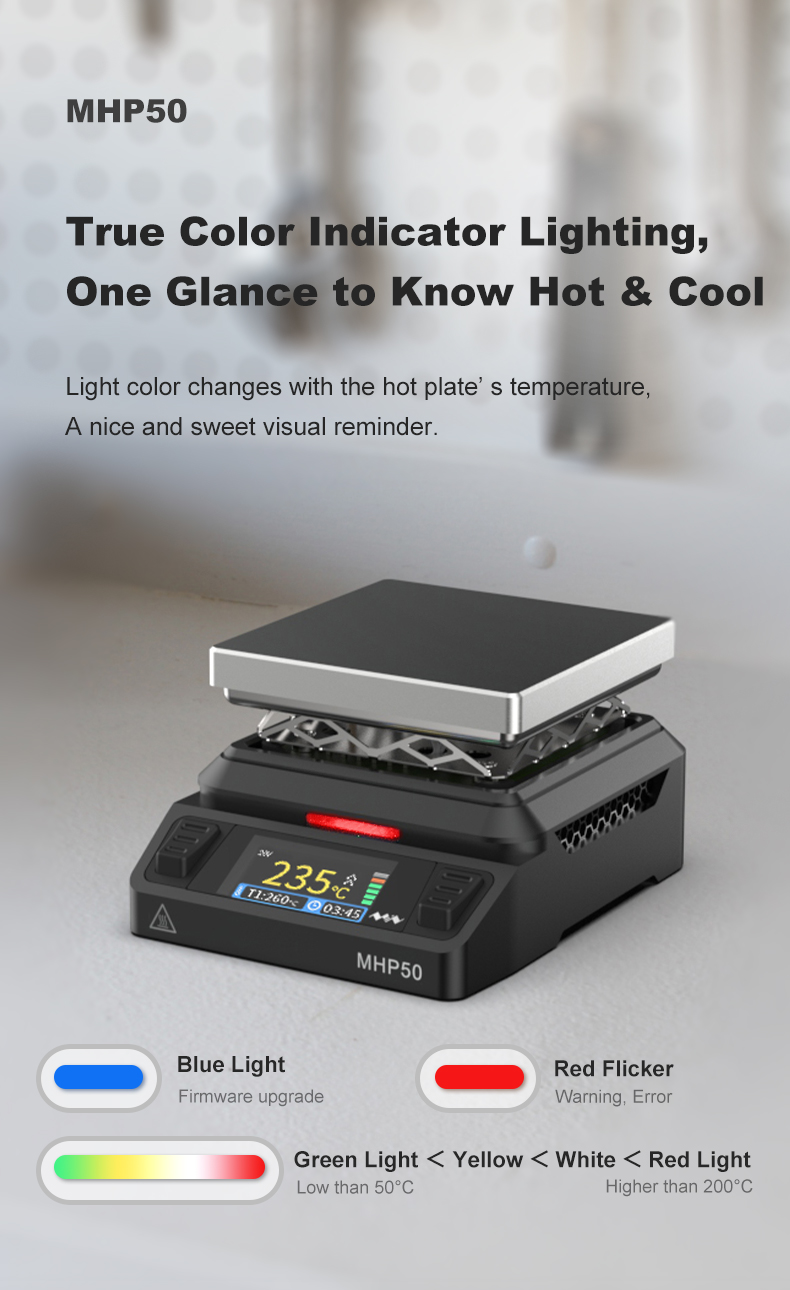

l Built-in OLED display and true color LED, light color changes with heating temperature;

l Two hot plates with different heating materials for your choice: aluminum alloy and brass with nano-ceramic coating, each with its own heating strengths for your needs;

l Hot plate adopts a futuristic design stainless steel bracket, artistic and practical;

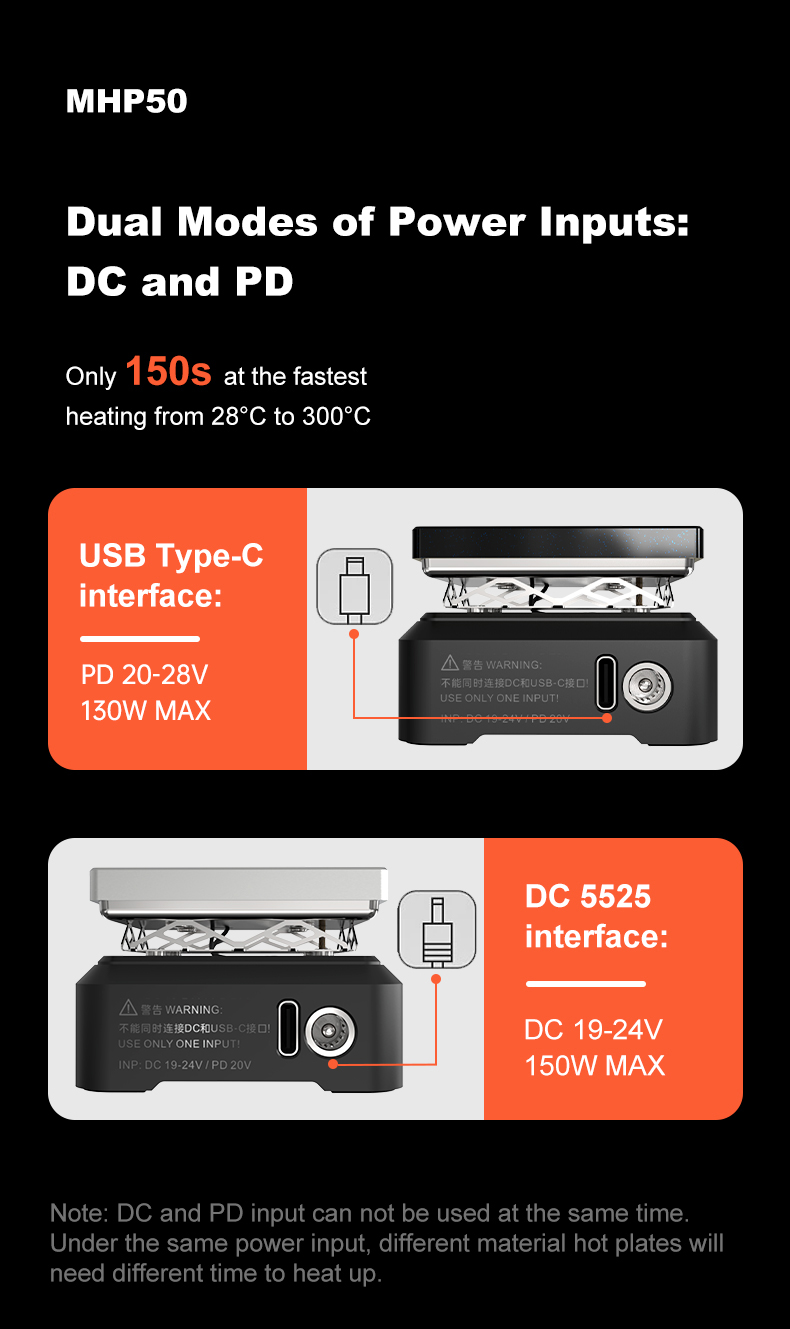

l Dual-mode power inputs: DC 5525 power jack for 19-24V input upto 150W; standard PD 20V power input to reach 100W;

l Takes only 150 seconds at the fastest heating from room temperature (28℃) to 300℃ (under DC 24V power input);

l Innovative heating curve function, you can customize the heating temperature and duration by sections to achieve similar reflow soldering effect;

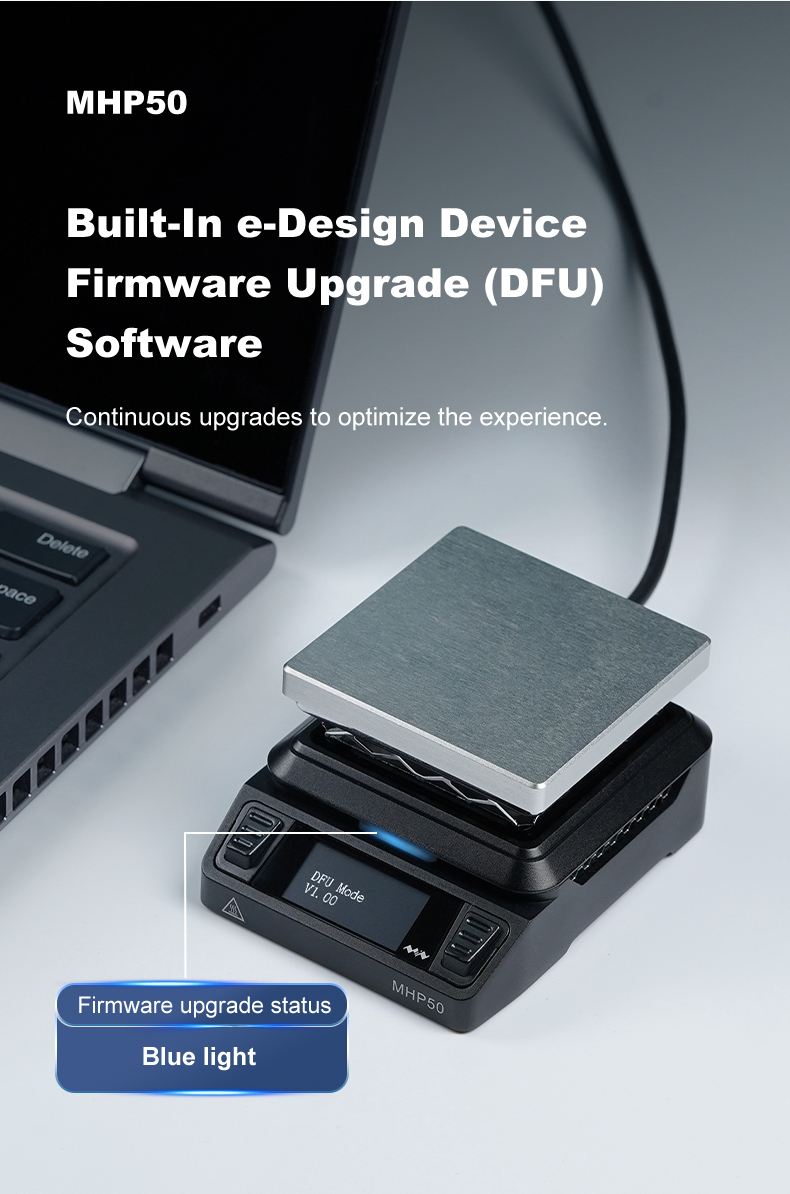

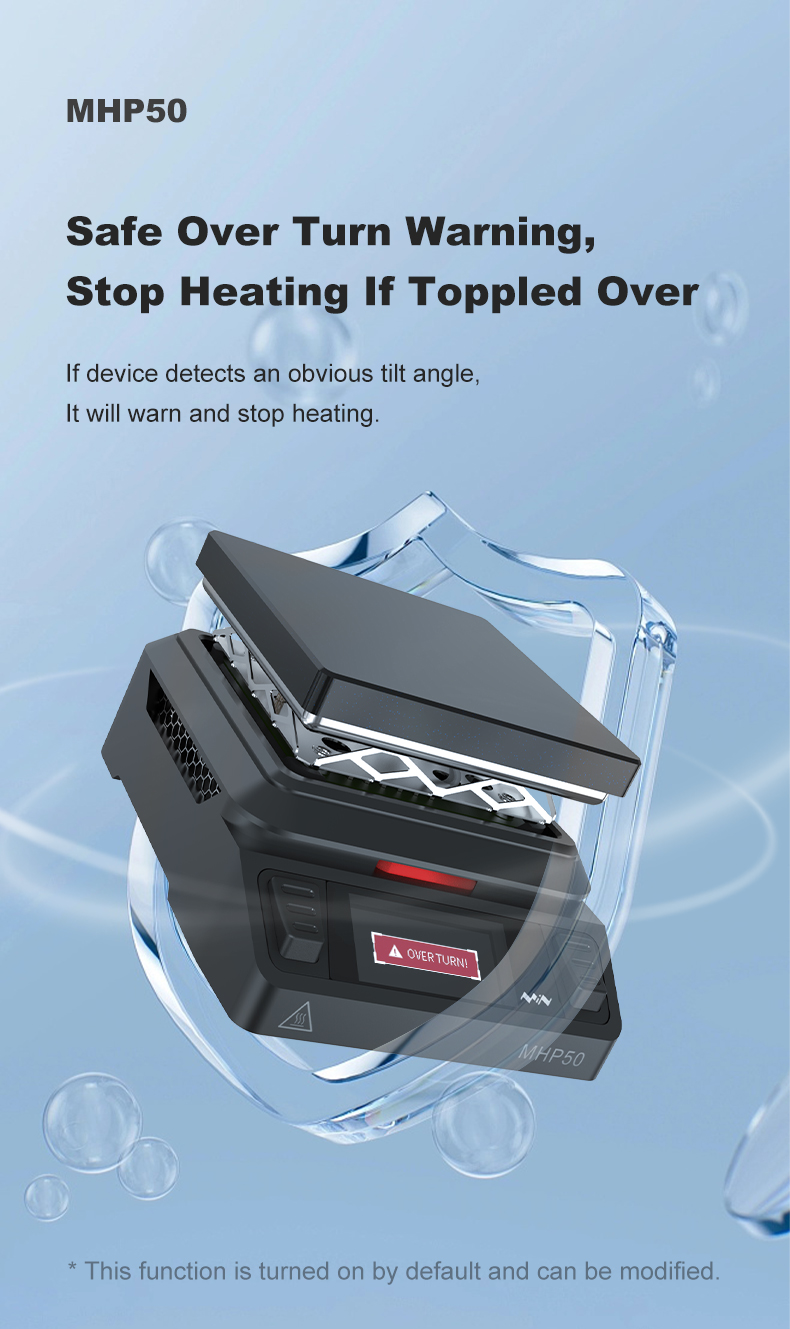

l Multiple intelligent functions: preset temperature, overturn protection, brightness adjustment, firmware upgrade;

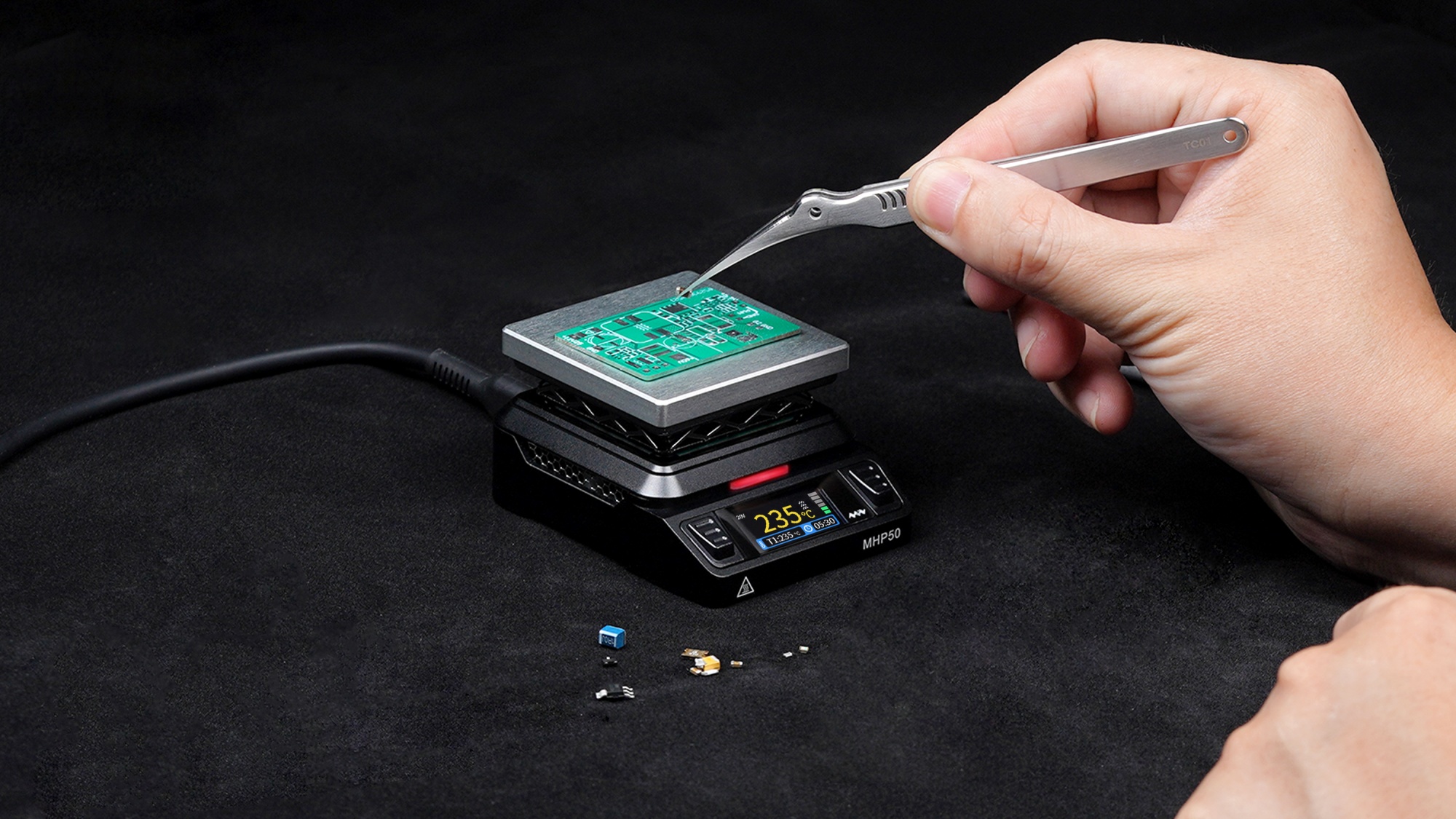

l Use scenarios: MHP50 Mini Hot Plate Preheater can be put into your pocket, for preheating, desoldering circuit boards, components, LED lamp beads, etc.


No comment

Previous : Mini Hot Plate Preheater MHP30 Next : MHP50 Mini Soldering Station Adapter
Product Detail


Product Features

l 5cm*5cm heating area, 3.7cm height, mini pocket size, suitable for mobile soldering application scenarios;

l Separable controller and hot plate, flexible to replace;

l Built-in high-speed cooling fan, which can automatically detect the temperature of the controller, intelligently adjust the fan speed, and accelerate heat dissipation;

l Innovative air deflector to effectively cut off heat transferring, protecting controller from thermal damage;

l 160*80 resolution color LCD display, clear and rich parameter display;

l Built-in OLED display and true color LED, light color changes with heating temperature;

l Two hot plates with different heating materials for your choice: aluminum alloy and brass with nano-ceramic coating, each with its own heating strengths for your needs;

l Hot plate adopts a futuristic design stainless steel bracket, artistic and practical;

l Dual-mode power inputs: DC 5525 power jack for 19-24V input upto 150W; standard PD 20V power input to reach 100W;

l Takes only 150 seconds at the fastest heating from room temperature (28℃) to 300℃ (under DC 24V power input);

l Innovative heating curve function, you can customize the heating temperature and duration by sections to achieve similar reflow soldering effect;

l Multiple intelligent functions: preset temperature, overturn protection, brightness adjustment, firmware upgrade;

l Use scenarios: MHP50 Mini Hot Plate Preheater can be put into your pocket, for preheating, desoldering circuit boards, components, LED lamp beads, etc.


Mini Hot Plate Preheater MHP50
MINIWARE Mini Hot Plate Preheater MHP50 is the second mini-sized intelligent constant temperature heating plate designed by e-Design after Mini Hot Plate Preheater MHP30. Its heating area has been increased from 3cm*3cm to 5cm*5cm, while retaining pocket size, suitable for a wider scope of application.
