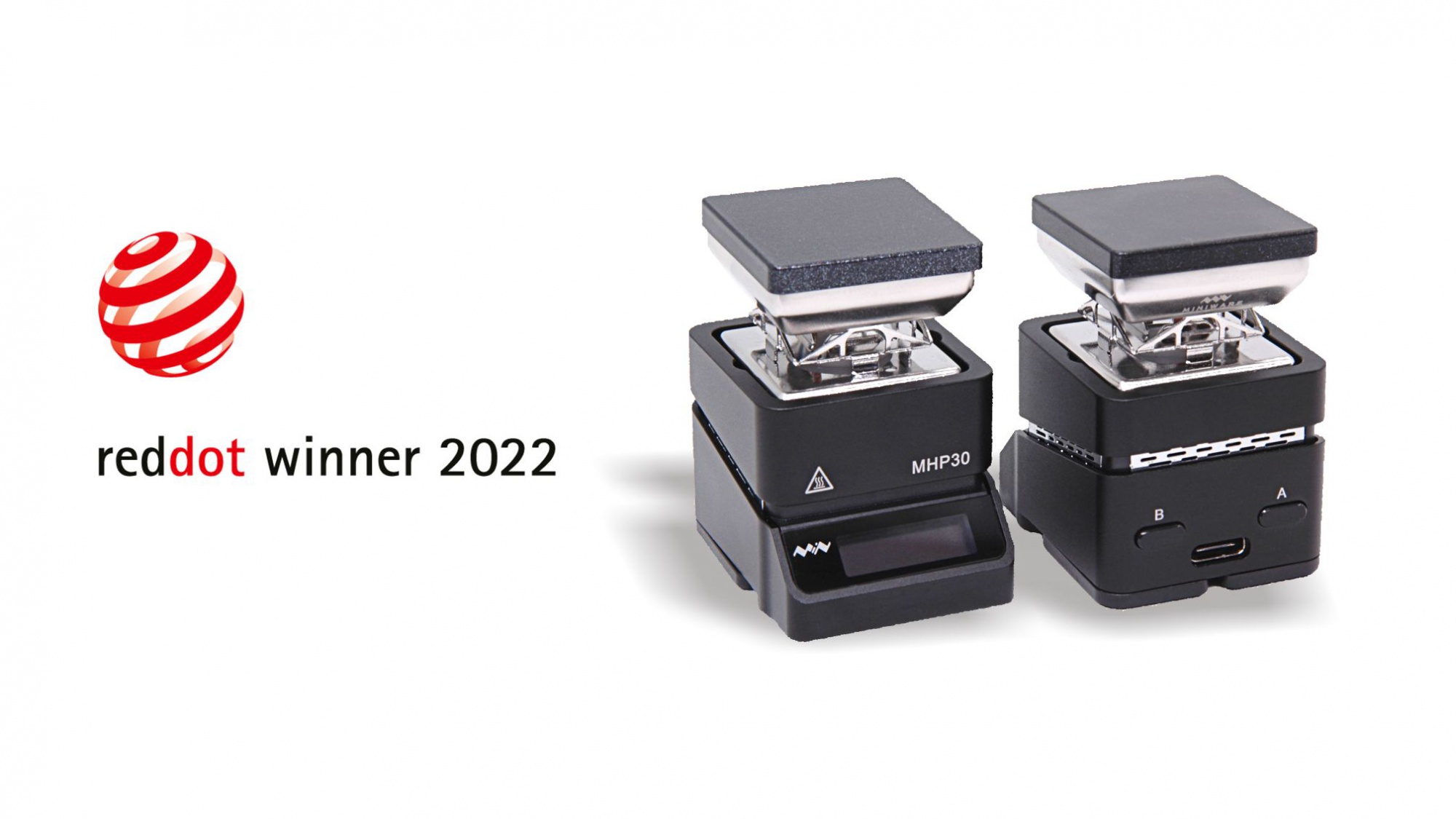

Mini Hot Plate Preheater MHP30
Mini Hot Plate Preheater MHP30
Mini Hot Plate Preheater MHP30
Mini Hot Plate Preheater MHP30

Mini Hot Plate Preheater MHP30

Winner of Red Dot Award Red Dot Design 2022;
Ultra mini size, exquisite and compact;
Separable controller and hot plate, flexible to replace;
High quality aluminum alloy shell and stainless steel heat dissipation bracket;
Built-in OLED display and true color LED, light color changes with heating temperature;
Two supporting legs at the bottom can be spread out to provide stable support;

Package Specifications：
Mini Hot Plate Preheater MHP30
Mini Hot Plate Preheater MHP30-PD

Mini Hot Plate Preheater MHP30

Select the number of specifications

Please check the product information you want!

Product Details Product parameters Product Features:




Heating area: 30mm*30mm

Temperature range: 100-350°C

Temperature stability: ±3%

Ground resistance: <2Ω

Power: 60W (Max)

Power input: PD

Size: Controller: L43mm*W35mm*H31mm

         Hot plate: L31mm*W31mm*H28mm

Weight (Controller + Hot plate): 82g



Ultra mini size, exquisite and compact;

Separable controller and hot plate, flexible to replace;

High quality aluminum alloy shell and stainless steel heat dissipation slices;

Built-in OLED display and true color LED, light color changes with heating temperature;

Two supporting legs at the bottom can be spread out to provide stable support;

Nano-ceramic coating on brass hot plate, smooth, durable, and evenly heated;

Hot plate features a futuristic stainless steel heat dissipation bracket, artistic and practical;

PD power supply input, power up to 60W;

Takes only 150 seconds to heat from room temperature to 300°C (65W PD power supply);

Energy saving and environmentally friendly;

Multi smart modes: preset temperature, tilt heating, power wake-up, automatic sleep, firmware upgrade

Applications: Portable for out fields; preheating, desoldering circuit boards, components, LED beads, etc.


No comment

Next : Mini Hot Plate Preheater MHP50
Product Details




Product parameters

Heating area: 30mm*30mm

Temperature range: 100-350°C

Temperature stability: ±3%

Ground resistance: <2Ω

Power: 60W (Max)

Power input: PD

Size: Controller: L43mm*W35mm*H31mm

         Hot plate: L31mm*W31mm*H28mm

Weight (Controller + Hot plate): 82g



Product Features:

Ultra mini size, exquisite and compact;

Separable controller and hot plate, flexible to replace;

High quality aluminum alloy shell and stainless steel heat dissipation slices;

Built-in OLED display and true color LED, light color changes with heating temperature;

Two supporting legs at the bottom can be spread out to provide stable support;

Nano-ceramic coating on brass hot plate, smooth, durable, and evenly heated;

Hot plate features a futuristic stainless steel heat dissipation bracket, artistic and practical;

PD power supply input, power up to 60W;

Takes only 150 seconds to heat from room temperature to 300°C (65W PD power supply);

Energy saving and environmentally friendly;

Multi smart modes: preset temperature, tilt heating, power wake-up, automatic sleep, firmware upgrade

Applications: Portable for out fields; preheating, desoldering circuit boards, components, LED beads, etc.


Mini Hot Plate Preheater MHP30
Winner of Red Dot Award Red Dot Design 2022;
Ultra mini size, exquisite and compact;
Separable controller and hot plate, flexible to replace;
High quality aluminum alloy shell and stainless steel heat dissipation bracket;
Built-in OLED display and true color LED, light color changes with heating temperature;
Two supporting legs at the bottom can be spread out to provide stable support;

Package Specifications：
Mini Hot Plate Preheater MHP30
Mini Hot Plate Preheater MHP30-PD
