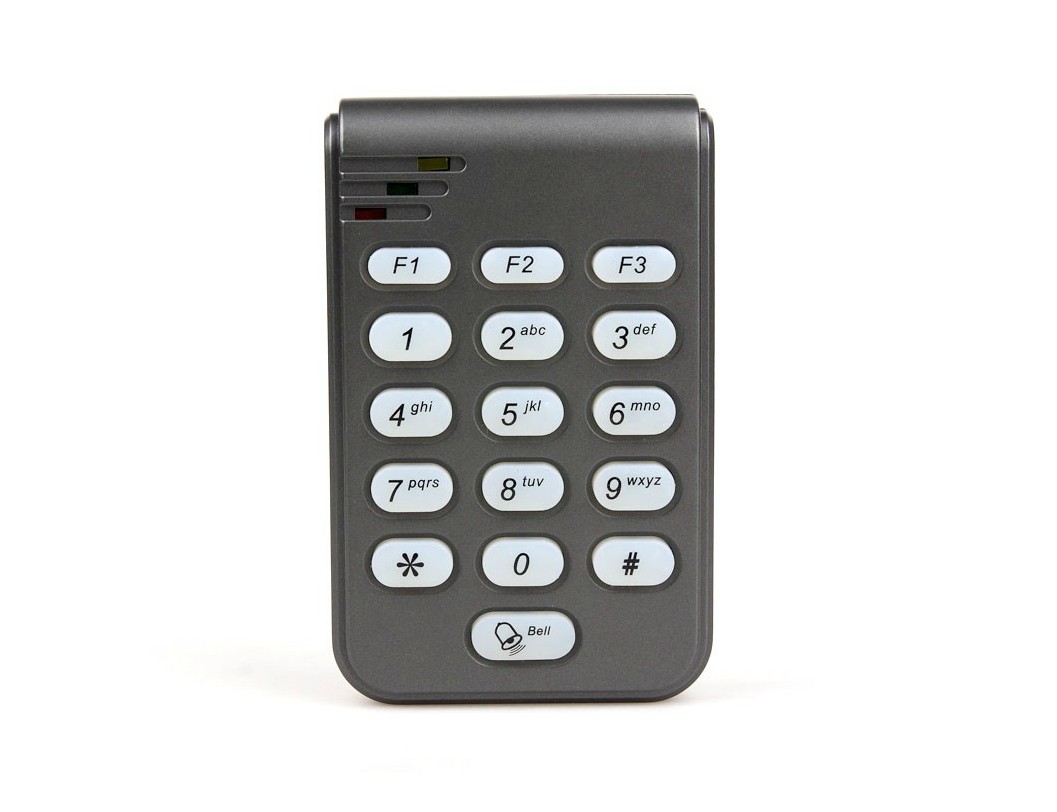

Password Reader Keyboard E180-311

Password Reader Keyboard E180-311

Dimensions: length (106mm) × width (67mm) × height (26mm) (with the bottom plate)
Power supply: DC 12V, working current: 50±5mA
Working mode: independent operation, networking
Working frequency: 125KHz
Proximity card type: EM card
Verification method: password, proximity card, proximity card + password
Effective distance of card reading: within 30mm
Card reading response time: 150ms
Communication interface: RS232
Operating environment: Temperature -10°C～55°C Relative humidity 40%～90%

Password Reader Keyboard E180-311

Select the number of specifications

Please check the product information you want!

Product Features Product parameters

Adopt advanced RF receiving circuit design and embedded microcontroller;

High receiving sensitivity, low working current, one-way DC power supply;

Pry-proof design;

Keyboard fluorescent lamp;

Novel and fashionable appearance.

No comment

Previous : Anti-tailgating Linkage Interlock Safety Door Controller E180-328 Next : Voice Control Keyboard E180-312
Product Features

Adopt advanced RF receiving circuit design and embedded microcontroller;

High receiving sensitivity, low working current, one-way DC power supply;

Pry-proof design;

Keyboard fluorescent lamp;

Novel and fashionable appearance.

Product parameters

Password Reader Keyboard E180-311
Dimensions: length (106mm) × width (67mm) × height (26mm) (with the bottom plate)
Power supply: DC 12V, working current: 50±5mA
Working mode: independent operation, networking
Working frequency: 125KHz
Proximity card type: EM card
Verification method: password, proximity card, proximity card + password
Effective distance of card reading: within 30mm
Card reading response time: 150ms
Communication interface: RS232
Operating environment: Temperature -10°C～55°C Relative humidity 40%～90%
