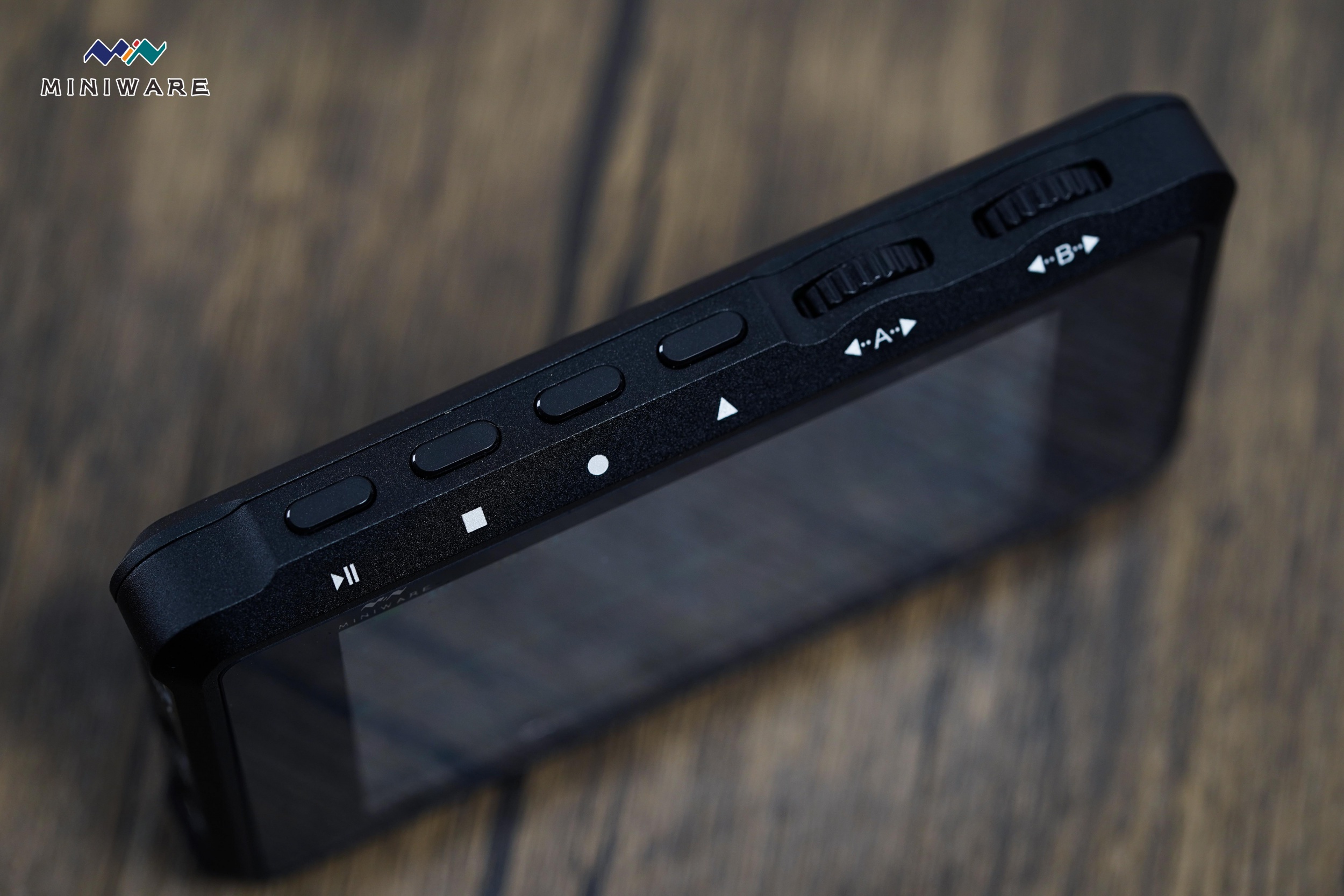

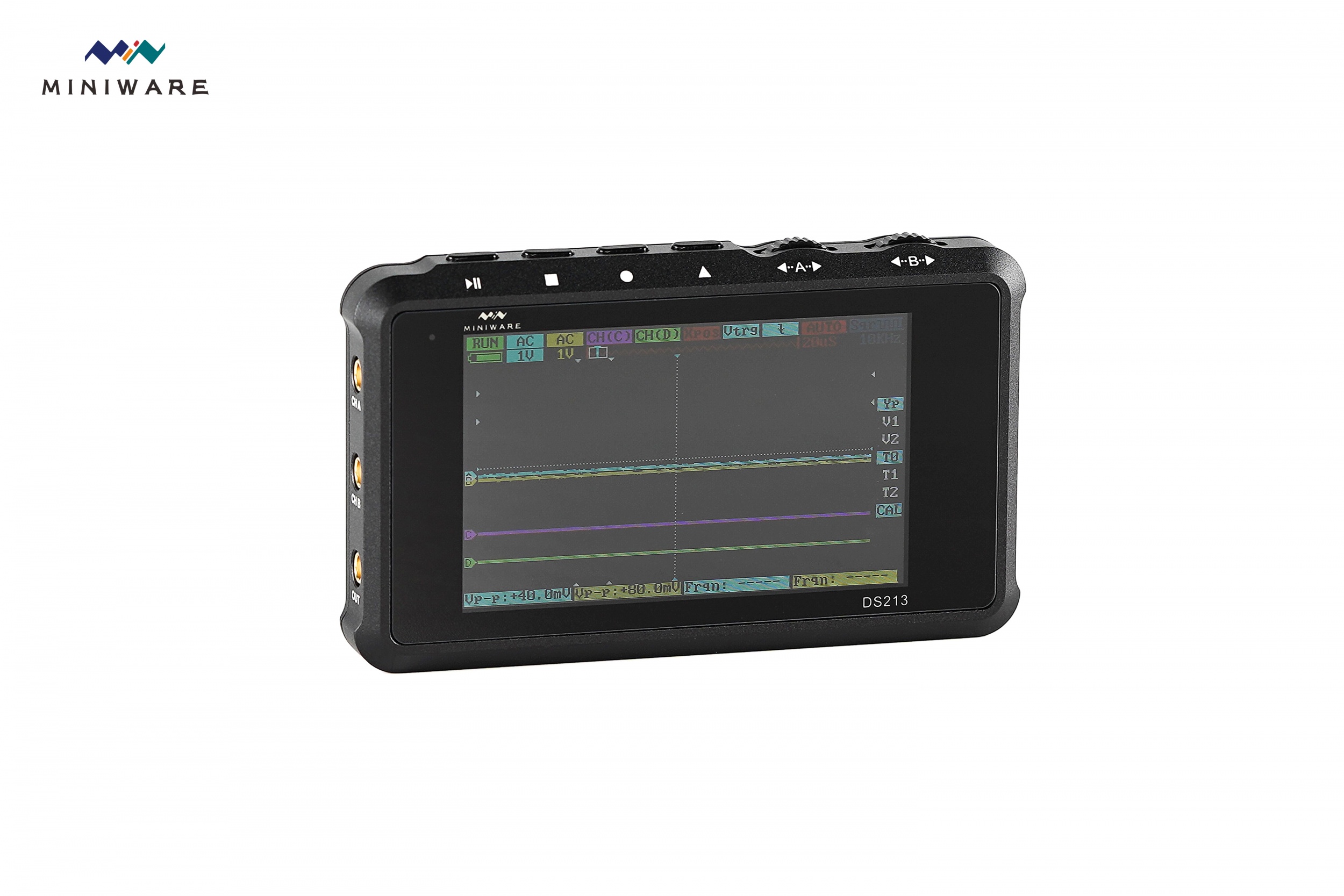

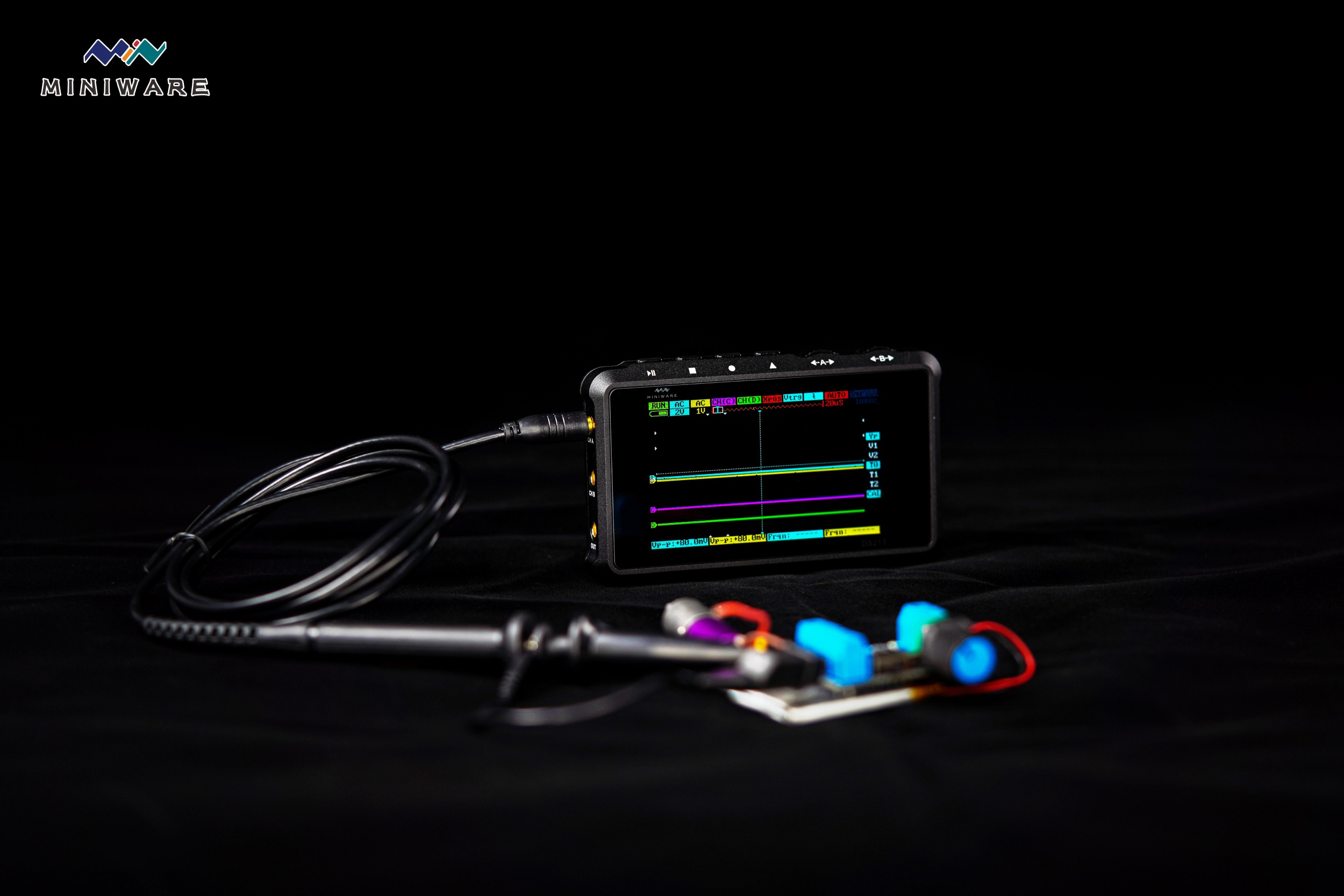

Mini Oscilloscope DS213
Mini Oscilloscope DS213
Mini Oscilloscope DS213
Mini Oscilloscope DS213

Mini Oscilloscope DS213

Mini size, light weight, portable and handheld;
It can store waveforms, making waveform analysis clearer and more effective;
Multiple trigger modes, support Ascend/Descend Edge Trigger, Positive/Negative Pulse Trigger, and Logic Trigger;
Powerful ability to process waveforms, it can automatically measure parameters such us voltage, frequency and pulse width.

Mini Oscilloscope DS213

Select the number of specifications

Please check the product information you want!

Product Details Product Features Product Parameters

         DS213 is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core. DS213 uses FPGA to manage external ADC’s control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has built-in 8MB USB flash drive for storing waveforms and upgrading system firmware.


Mini size, light weight, portable and handheld;

It can store waveforms, making waveform analysis clearer and more effective;

Multiple trigger modes, support Ascend/Descend Edge Trigger, Positive/Negative Pulse Trigger, and Logic Trigger;

Powerful ability to process waveforms, it can automatically measure parameters such us voltage, frequency and pulse width.


CPU: ARM Cortex M3

FIFO & Control: FPGA

ADC: HWD9288-100

Analog Channels: 2（[CH_A] [CH_B]）

Digital Channels: 2（[CH_C] [CH_D]）

Operation Channel: INV [CH_A], INV [CH_B], [CH_A]+[CH_B]、 [CH_A]-[CH_B]、[CH_C]&[CH_D]、[CH_C] | [CH_D]

Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe)

                100mV-100V/div (1-2-5 STEP) (using X10 probe)

Vertical Resolution: 8 bits

Sample Memory Depth: 4 channels, 4*4K

Coupling: DC, AC

Max Input Voltage: ±40Vpp (using X1 probe)

                 ±400Vpp (using X10 probe)

Trigger Types: Ascend/Descend Edge Trigger Mode, Positive/Negative Pulse Trigger, Logic Trigger

Trigger Mode: Auto, Normal, Single, Slow

Trigger Source: [CH_A] [CH_B] [CH_C] [CH_D]

Signal Source: Square Wave: 10Hz to 8MHz, in total 20 shifts and 3 Vpp Signal Sources;

Sine/Triangle/Sawtooth Wave: 10Hz to 20MHz, in total 11 shifts and 3 Vpp Signal Sources

Storage: built in 8M USB disk

File Types: BMP、BUF、CSV

Auto Measurement Types: Signal sequence/cycle/duty ratio, peak voltage/virtual value/max value/min value/average

Cursor Measurement: Time value, Amplitude value

Display Modes: 4 wave lines: Line 1: [CH_A], HIDE

Line 2: [CH_B], HIDE

Line 3: [CH_C], REC_1, REC _2, REC _3, REC _4, HIDE

Line 4: [CH_D], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] | [CH_D], HIDE

Sampling Mode: Real-time Sampling

Sampling Rate: 100M Sa/s

Battery: 1000mAh

Size: 99.5mmx58.5mmx13.5mm

Weight: 129g (with battery)

Certificate: CE, FCC


No comment

Next : Mini Oscilloscope DS212
Product Details

         DS213 is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core. DS213 uses FPGA to manage external ADC’s control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has built-in 8MB USB flash drive for storing waveforms and upgrading system firmware.


Product Features

Mini size, light weight, portable and handheld;

It can store waveforms, making waveform analysis clearer and more effective;

Multiple trigger modes, support Ascend/Descend Edge Trigger, Positive/Negative Pulse Trigger, and Logic Trigger;

Powerful ability to process waveforms, it can automatically measure parameters such us voltage, frequency and pulse width.


Product Parameters

CPU: ARM Cortex M3

FIFO & Control: FPGA

ADC: HWD9288-100

Analog Channels: 2（[CH_A] [CH_B]）

Digital Channels: 2（[CH_C] [CH_D]）

Operation Channel: INV [CH_A], INV [CH_B], [CH_A]+[CH_B]、 [CH_A]-[CH_B]、[CH_C]&[CH_D]、[CH_C] | [CH_D]

Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe)

                100mV-100V/div (1-2-5 STEP) (using X10 probe)

Vertical Resolution: 8 bits

Sample Memory Depth: 4 channels, 4*4K

Coupling: DC, AC

Max Input Voltage: ±40Vpp (using X1 probe)

                 ±400Vpp (using X10 probe)

Trigger Types: Ascend/Descend Edge Trigger Mode, Positive/Negative Pulse Trigger, Logic Trigger

Trigger Mode: Auto, Normal, Single, Slow

Trigger Source: [CH_A] [CH_B] [CH_C] [CH_D]

Signal Source: Square Wave: 10Hz to 8MHz, in total 20 shifts and 3 Vpp Signal Sources;

Sine/Triangle/Sawtooth Wave: 10Hz to 20MHz, in total 11 shifts and 3 Vpp Signal Sources

Storage: built in 8M USB disk

File Types: BMP、BUF、CSV

Auto Measurement Types: Signal sequence/cycle/duty ratio, peak voltage/virtual value/max value/min value/average

Cursor Measurement: Time value, Amplitude value

Display Modes: 4 wave lines: Line 1: [CH_A], HIDE

Line 2: [CH_B], HIDE

Line 3: [CH_C], REC_1, REC _2, REC _3, REC _4, HIDE

Line 4: [CH_D], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] | [CH_D], HIDE

Sampling Mode: Real-time Sampling

Sampling Rate: 100M Sa/s

Battery: 1000mAh

Size: 99.5mmx58.5mmx13.5mm

Weight: 129g (with battery)

Certificate: CE, FCC
