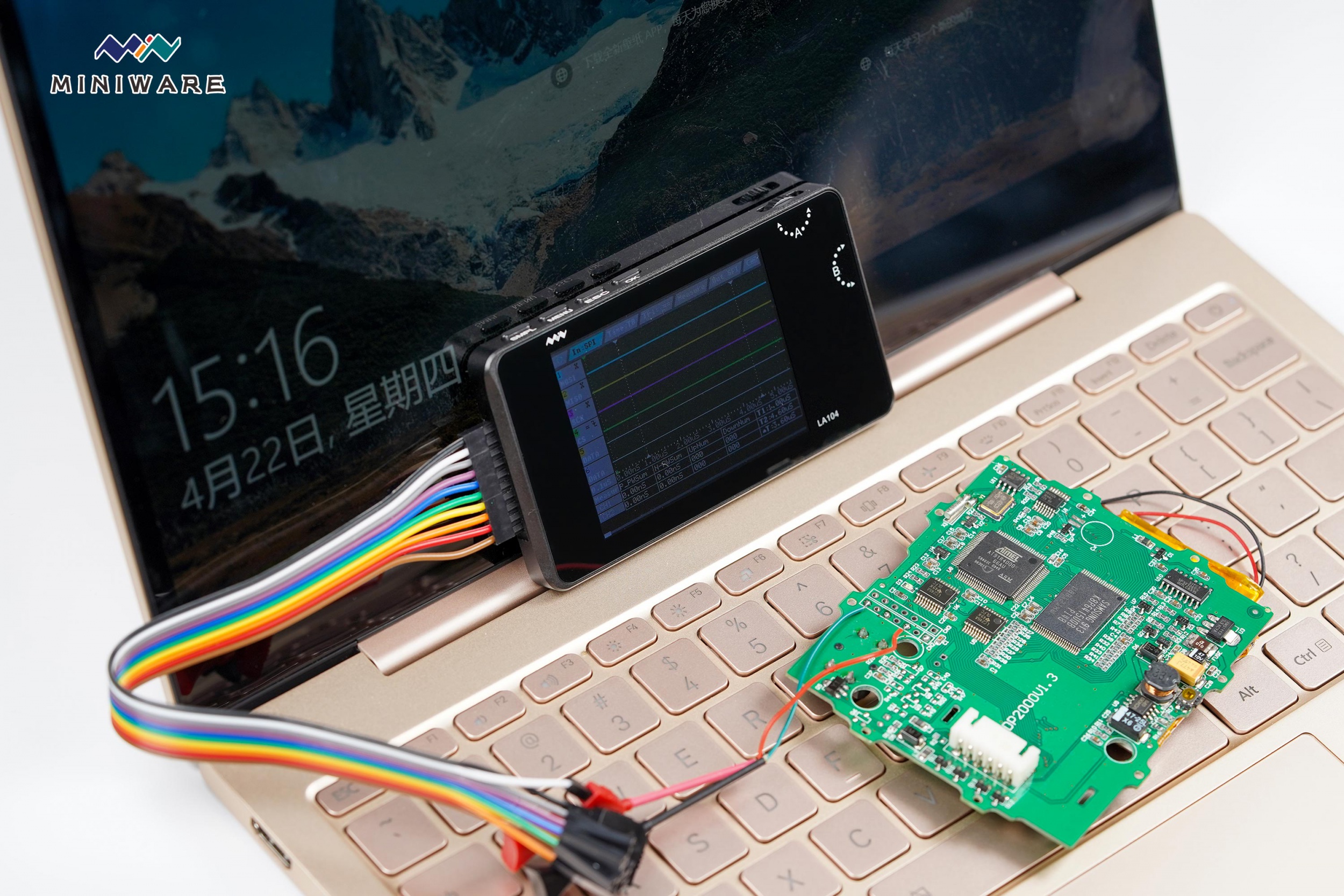

Logic Analyzer LA104
Logic Analyzer LA104
Logic Analyzer LA104
Logic Analyzer LA104

Logic Analyzer LA104

CNC aluminum alloy shell, compact and portable;
Comes with a 2.8" LCD screen, no need for a host computer;
Four-channel logic analyzer, built-in three serial protocol analysis of SPI, I2C, UART;
Built-in 500mAh battery, independent power supply;
Easy to operate, real-time display of logic waveforms;
Up to 100Mb/s data acquisition rate, the minimum captureable pulse width is 10ns;
Support user-defined protocol mode, with seven different trigger types.

Logic Analyzer LA104

Select the number of specifications

Please check the product information you want!

Product Details Product parameters



Input:

● Channels: 4

● Max Sample Rate: 100Mhz

● Minimum capture pulse width: 10ns

● Input impedance: 1MΩ



Output:

● Channels: 4

● Mode: SPI, I2C, UART

● 3V output Channel: 1



Specifications:

● Storage: 8MB USB flash disk memory

● Screen Size: 2.8''

● Screen Resolution: 320×240

● Battery: 500mAh

● Dimension: 100mmX56mmX8.6mm

● Weight: 83g

● Certifications: CE, FCC


No comment

Product Details



Product parameters

Input:

● Channels: 4

● Max Sample Rate: 100Mhz

● Minimum capture pulse width: 10ns

● Input impedance: 1MΩ



Output:

● Channels: 4

● Mode: SPI, I2C, UART

● 3V output Channel: 1



Specifications:

● Storage: 8MB USB flash disk memory

● Screen Size: 2.8''

● Screen Resolution: 320×240

● Battery: 500mAh

● Dimension: 100mmX56mmX8.6mm

● Weight: 83g

● Certifications: CE, FCC


Logic Analyzer LA104
CNC aluminum alloy shell, compact and portable;
Comes with a 2.8" LCD screen, no need for a host computer;
Four-channel logic analyzer, built-in three serial protocol analysis of SPI, I2C, UART;
Built-in 500mAh battery, independent power supply;
Easy to operate, real-time display of logic waveforms;
Up to 100Mb/s data acquisition rate, the minimum captureable pulse width is 10ns;
Support user-defined protocol mode, with seven different trigger types.
